Product Details:
|
Frequency: | 20-20000 | Application: | Microphone Capsule |
---|---|---|---|
Mounting Type: | Microphone Capsule | Size / Dimension: | 34mm Microphone Capsule |
Description: | Microphone Capsule | Type: | CY002 |
Sensitivity (dB@1kHz, 0dB=1V/Pa): | -40.0 | Polar Pattern: | Cardioid,F-8,Omni-Directional |
Frequency Response (Hz): | 20-20000 | Capacitance: | 60.0pF |
Diaphragm: | 6μm Mylar, Gold-plated | Weight (g): | 55 |

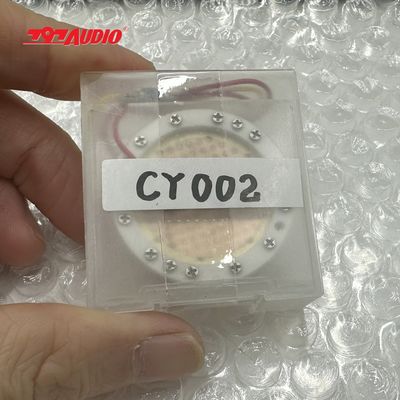

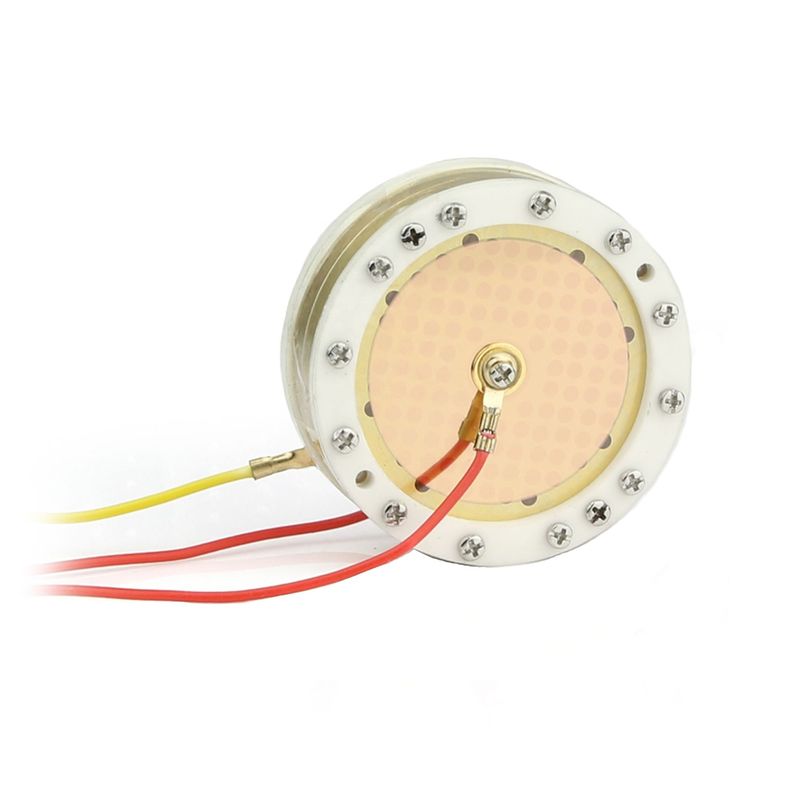

This CY002 Microphone Capsule 797 Audio K67 Type
This microphone capsule made by 797 Audio Bejing is patterned after the famous Neumann K67 microphone capsule. Great for DIYers! This is the same capsule was in Studio Projects C1 and C3 microphone and the first run of Soundelux U95S microphone.
This capsule will make almost any microphone sound better. Its clear and crisp.
High quality sound. Fantastic for vocals, miking guitar cabinets. It has separate brass backplates (not electrically separate though) and mylar/gold diaphragms. Capsule can be used for Cardioid and Omni patterns.
Type | CY002 | CY002JP | CY004(A) | CY006 | CY007 | |
Sensitivity (dB@1kHz) | -40.0 | -38.0 | -40.0 | -40.0 | -40.0 | |
Polar Pattern | Omnil, Cardioid,F-8 | |||||
Frequency Response (Hz) | 20-20000 | |||||
Capacitance (pF) | 60.0 | |||||
Diaphragm |
| 6 μm Mylar, Gold-plated | 3 μm | 6μm | ||
Weight (g) |
| 55.0 |
|
Interview, Live Chat, Recording, Broadcasting, Conference, Speech, Gaming,Singing, Entertainment,Etc.
Beijing 797 Audio Co.,Ltd. was founded in 1953 as an electric-acoustic manufacturer with long history in the field of microphone,speaker system,audio,etc.
Beijing 797 Audio Co., Ltd. has set microphone, speaker national standard, industry standard for audio, It covers audio products, public broadcasting and other fields. We already get over 70 patents on microphones and loudspeakers. We get ISO9001,ISO14001,ISO45001,and CE certificates, And our products have also been winning awards continuously.
